4 ZONE PANELCFP PANEL NON EXPANDABLE

Item will be shipped in 1 business day

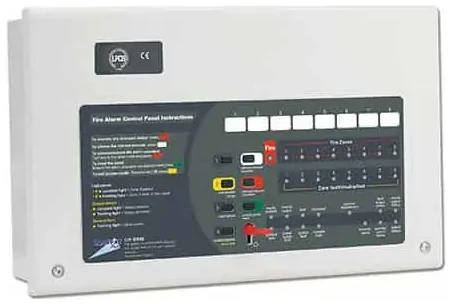

LPCB certified to EN54-2/4, Context Plus’s CFP 4 zone
conventional fire alarm panel offers an array of user and
installer-friendly features at a very competitive price.
Supplied in an attractive flush or surface mountable plastic enclosure,
it includes four detector zones, four conventional sounder circuits,
class change and alert inputs, on-board fire and fault relays and
combined keypad/keyswitch entry.

A wide range of engineering functions are also provided including
selectable zone delays, coincidence and non-latching zone facilities.
Comprehensive test and fault finding facilities are also provided.
Optional repeaters and relay expansion boards are also available.

RWF315,000

No more offers for this product!

Description

  • Approvals/certifications;           Certified to EN54-2/4 by the LPCB (176b) / (0832-CPD-1704)
  • Mains supply          ,                      230V 50/60Hz.
  • Mains rated current                    350mA maximum
  • Internal power supply                19V-28.5V (27V nominal). Ripple 7V maximum (battery fault)
  • Total output current limited to   1.5A @ 230Vac (ImaxA eq 146mA).
  • Quiescent current                          25mA (mains failed, internal sounder active, PSU & gen fault LED lit).
  • Alarm voltage                                 27V max, 20V min (final battery voltage)
  • Max battery size and type            2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah.
  • No. of detector zone circuits       4 (Max. length per circuit is 500m)
  • Call point resistor value               470 to 680?.
  • Max. devices per detector zone    25 detectors (or 32 detectors/manual call points combined).
  • No. of conventional sounder circuits                   4 (Max. length per circuit is 500m)
  • EOL resistor value                                                   6800? 5% Tol. 0/25W (blue, grey, red, gold)
  • Max. sounder output current                                4 x 200mA (800mA total)
  • Product dimensions                                                 (mm) 380 W x 235 H x D 96mm.
  • Construction & finish Plastic lid and base;          RAL7035 textured.
  • IP Rating                                                                      IP30.
  • Weight                                                                          1.75kg (without batteries)
  • Operating conditions/temperature                      -5°C to +40°C. Max relative humidity: 95%
